Category 07 · Gaskets and seals

Tri-clamp gaskets sized to the ferrule, from $0.85 a piece.

Tri-clamp gaskets in EPDM, silicone, Viton and PTFE, and plate heat exchanger gaskets for dairy pasteurisers and plate coolers. Sold by the piece to parlours, cheese rooms and co-op plant maintenance crews anywhere in the United States, packed and shipped from Middleton, WI.

Price basis per piece, quantity breaksPHE gaskets per gasket, on inquiryNo cart. Inquiry only

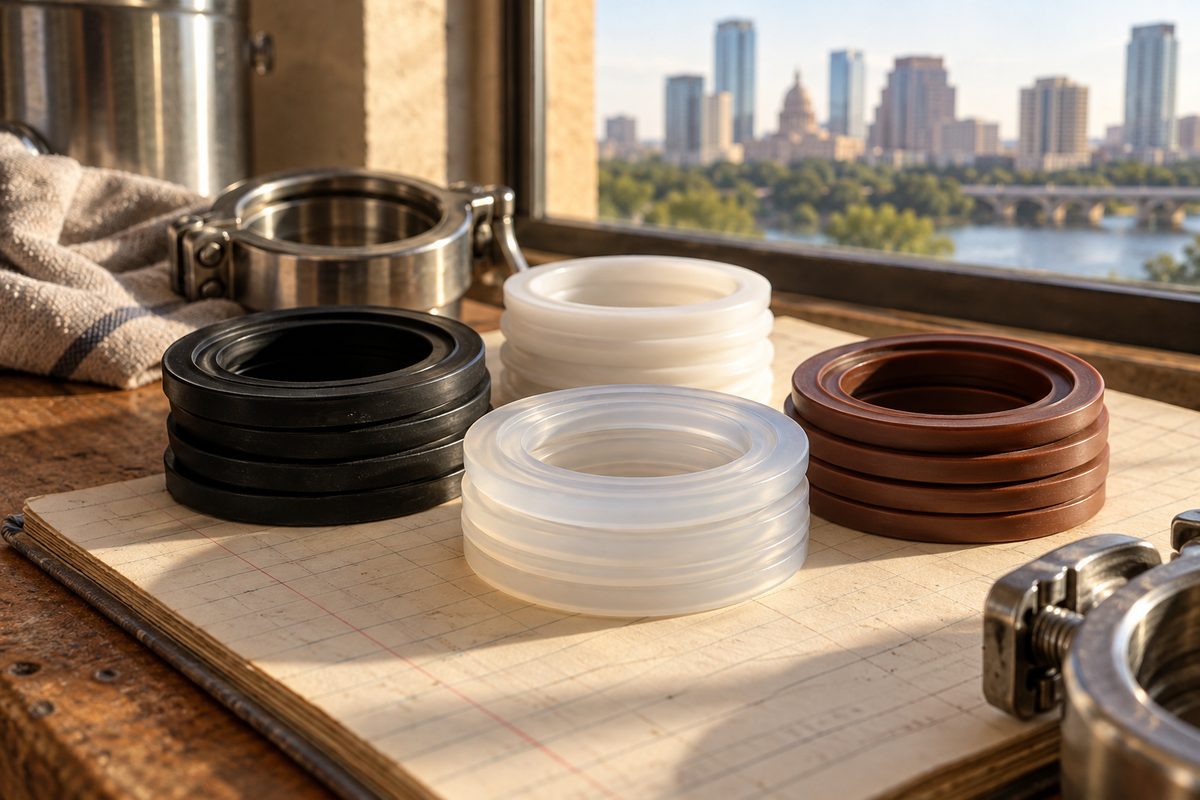

Stacks of tri-clamp gaskets in four materials

Item 07.1

Tri-clamp gaskets

Most tri-clamp leaks we see are a 1.5-inch gasket on a 2-inch ferrule. The clamp closes. It still weeps. That happens because people order by the pipe, and on a sanitary line the pipe size and the ferrule flange are two different numbers, so the desk asks for the flange outside diameter measured across the face with calipers and sizes the gasket from that.

We keep four compounds. Black EPDM is the default for milk, hot water and the usual alkaline and acid CIP cycle, and it is what goes on most parlour and milk-room joints. Translucent silicone handles dry heat and fatty product well but does not like repeated steam. Brown Viton is for oils, solvents and some aggressive sanitisers. White PTFE is near-inert and takes heat, but it does not spring back, so it wants a tight clamp and a clean ferrule face.

Buy them in a box of 25 and keep them in the dark. A gasket that has been clamped once has already taken its set. We don't sell used rubber, and a gasket off a joint you just opened should go in the bin, not back in the drawer.

Ferrule sizes and the flange OD to measure
Ferrule sizeFlange ODEPDM band, 1–24 pcs
1.5 in1.984 in / 50.4 mm$0.85–1.40
2 in2.516 in / 63.9 mm$1.00–1.70
3 in3.579 in / 90.9 mm$1.60–2.60
4 in4.682 in / 118.9 mm$2.40–3.80
Material multipliers against the EPDM band
MaterialColourBand vs EPDM
EPDMBlack×1.00
SiliconeTranslucent×1.35
PTFEWhite×2.60
VitonBrown×3.20

Price basisPer piece. 25–99 −6%, 100–499 −12%, 500+ −18%

Ask about this part Run the estimator

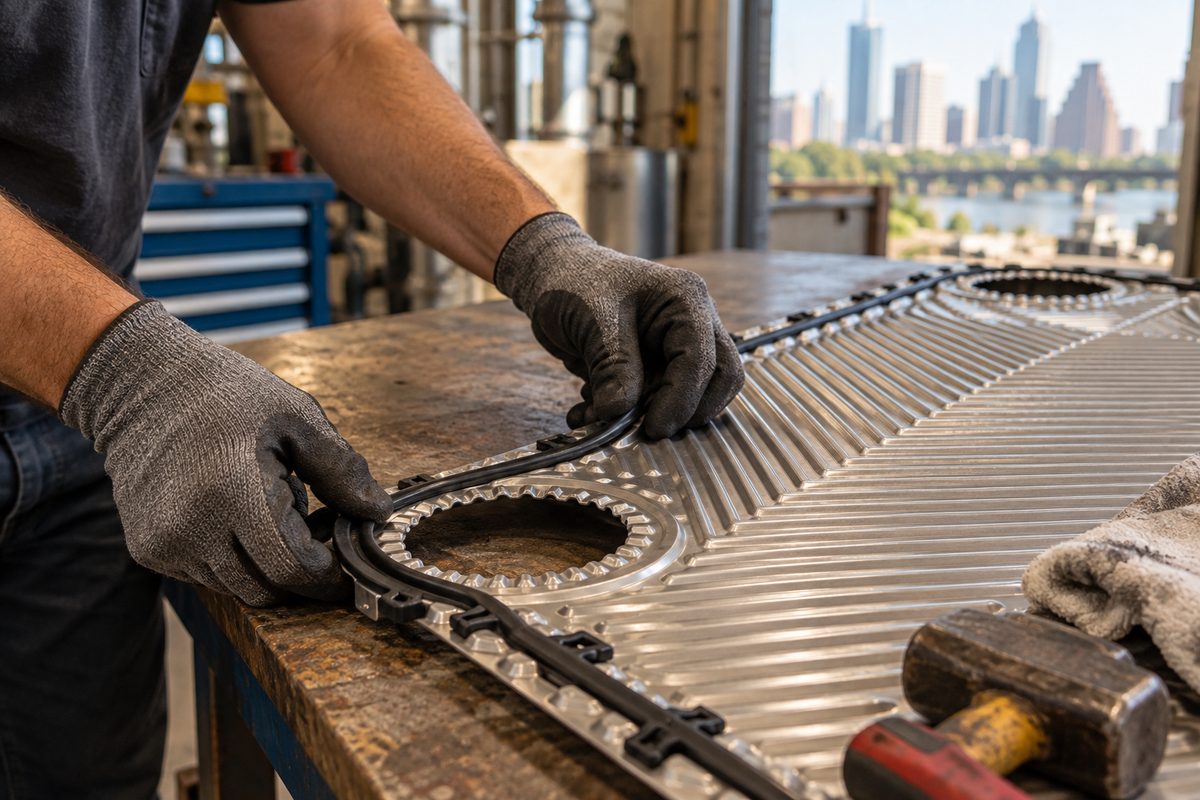

Gloved hands fitting a gasket to a heat exchanger plate
Clip-in gasket going onto a chevron plate. No glue, no oven.

Item 07.2

Plate heat exchanger gaskets

Plate heat exchanger gaskets for dairy plate coolers, pasteuriser sections and small cheese-room heaters, in clip-in and glued styles, cross-referenced by plate pattern.

A plate cooler that starts to cross-leak shows up as water in the milk or milk in the well water, and either one is a phone call you don't want from the plant. The gasket is usually the reason. The plate is usually fine.

We match PHE gaskets by the plate, not by the frame's badge. Lay one plate flat, put a tape measure across it and photograph it square on. Send that with the overall length and width, the port diameter, the plate count and whether the old gaskets clip in or are glued. Clip-in gaskets snap into the groove with lugs through the plate edge and go on at the bench in minutes. Glued gaskets need the groove stripped and a cure time, and the job takes a day if you do it right.

Re-gasket a whole section at once. Mixing a new gasket with its neighbours that have ten years of compression set leaves the new one carrying the whole load, and it leaks within the season.

What the desk needs to match a plate
DetailHow to get it
Plate length and widthTape across the plate, edge to edge, in mm or inches
Port diameterCalipers across the inside of one port hole
Plate countCount them in the frame; add the two end plates separately
FixingClip-in lugs or glued groove
CompoundNBR for most milk sections, EPDM where hot water runs

Price basisPer gasket, on inquiry. Depends on plate size, compound and fixing

Ask about this part

Temperature and chemical table

The ranges we go by at the counter when someone asks which gasket to fit. Maker data for a given compound can differ, and where it does, the maker's sheet wins.

Tri-clamp gasket materials in dairy service
MaterialTypical working rangeSteamHot caustic CIPAcid rinseMilk fatWhere we fit it
EPDM−40 to 300 °FGoodGoodGoodFairMilk lines, receiver jars, CIP return. The default.
Silicone−60 to 400 °F dryPoor on repeatFairFairGoodCream and dry-heat joints, not steam-sanitised lines
Viton−15 to 400 °FFairFairVery goodVery goodOil, solvent and strong acid service
PTFE−100 to 450 °FVery goodVery goodVery goodVery goodChemical dosing, hot processing; needs a tight clamp

If a gasket comes off swollen, sticky or cracked at the bead after a few weeks, the material is wrong for the chemical, not faulty. Tell us what your CIP detergent is and at what temperature it runs.

From caliper to crate

  1. Measure

    Calipers across the ferrule flange. For a PHE, one plate photographed flat with a tape on it.

  2. Send it

    Phone, email or the form below. Quantity, material and the CIP chemical you run.

  3. Desk confirms

    Stock, a firm price and a lead time, usually the same working day. PHE gaskets can take longer to confirm.

  4. Invoice and ship

    You approve the invoice. Orders in by the early afternoon usually leave the same day.

Not from us

  • Used or pulled gaskets

    Rubber that has been clamped has already taken its set. It won't seal twice.

  • A PHE match from a colour

    Black gaskets on grey plates describes half the dairies in the country. We need the plate.

  • A plant-wide shutdown refit

    Hundreds of plates on a fixed shutdown date need a service crew with the frame on site. We supply parts, we don't send fitters.

Before you ask

What buyers ask about gaskets

Can I order tri-clamp gaskets by pipe size?

Tell us the ferrule, not the pipe. Measure the flange outside diameter across the ferrule face with calipers and send that number. A 2-inch ferrule measures about 2.516 inches across the flange. If you only have a ruler, give us millimetres and we will work it out.

Why does Viton cost so much more than EPDM?

The raw compound costs more and the gaskets are made in smaller runs. In the estimator Viton carries a 3.2 times multiplier over EPDM. Most dairy lines do not need it, and we will say so if you ask for it on a plain milk line.

Do you match plate heat exchanger gaskets from a photo?

From a photo with a tape measure in frame, the plate's overall length and width, the port diameter and the plate count, yes. From a colour or a rough description, no. The wrong set costs you a day with the frame open and the cooler out of service.

Is the gasket price band what I pay?

No. The band is indicative. The desk gives you a firm price once it knows what you actually have, and freight and any sales tax go on top.

Gasket inquiry

Send the flange diameter

Give us the ferrule size or the caliper reading, the material, how many and what runs through the line. For heat exchanger plates, attach the plate details in the notes and we will reply with what we can match.
